Automatic chili paste filling machine

Description

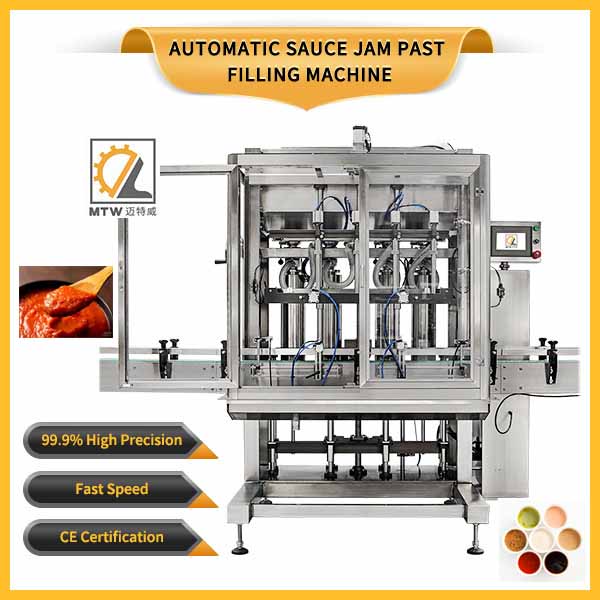

MTW Automatic chili paste filling machine 4nozzles

The speed of the 4nozzles for 500ml bottles is around 2000bottles per hour, this automatic paste filling machine use panasonic servo motor drive piston pump.  the advantages of the piston pump filling is it not only fit for liquid filling but also thick paste filling, for the paste with particles or very very sticky paste such as peanut butter, you can choose our rotor pump filling machine. usually for the sticky chili paste, it will have soft particles, you can choose this automatic chili paste filling machines.

This is speed sheet for 500ml bottles.

Based on 500ml bottles	Filling speed	If have stock
4filling nozzles	About 2000-2500 bottles per hour	In stock
6filling nozzles	About 2500-3000 bottles per hour	In stock
8filling nozzles	About 3000-3500 bottles per hour	In stock
10filling nozzles	About 3500-4000 bottles per hour	In stock
12filling nozzles	About 4000-4500 bottles per hour	In stock
14filling nozzles	About 4500-5000 bottles per hour	Need tailor made
16filling nozzles	About 5000-5500 bottles per hour	Need tailor made
18filling nozzles	About 5500-6000 bottles per hour	Need tailor made
20filling nozzles	About 6000-6500 bottles per hour	Need tailor made

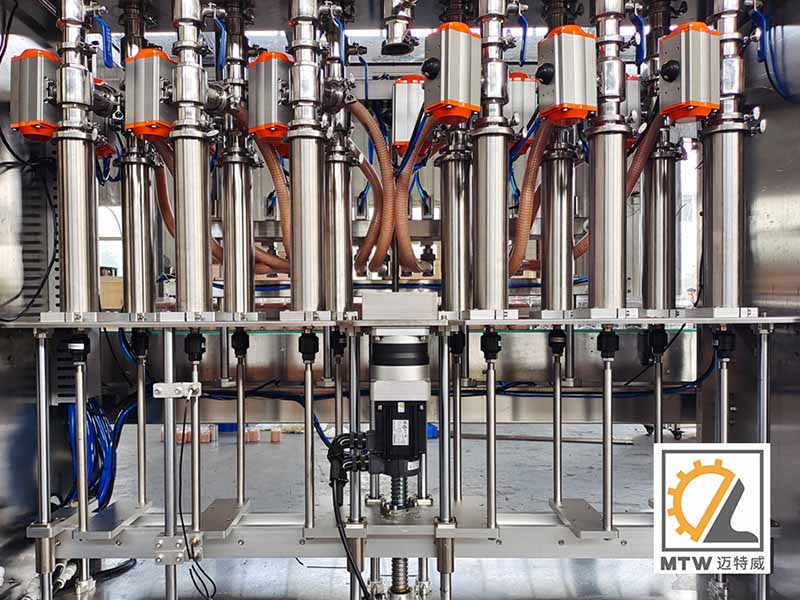

Usually when purchasing an automatic filling machine, our saler will ask your bottle  volume, we will choose the piston pump according to your bottles. this is the piston pump and panasonic servo motor, we will add rotor valve for sticky paste m this piston pump is easy cleaning, there is one cleaning button in the touch screen. it is easy operated, this piston pump and paste touching part use 316L food grade materials, meet CE certification, all the motors and other parts also meet CSA and UL certification.

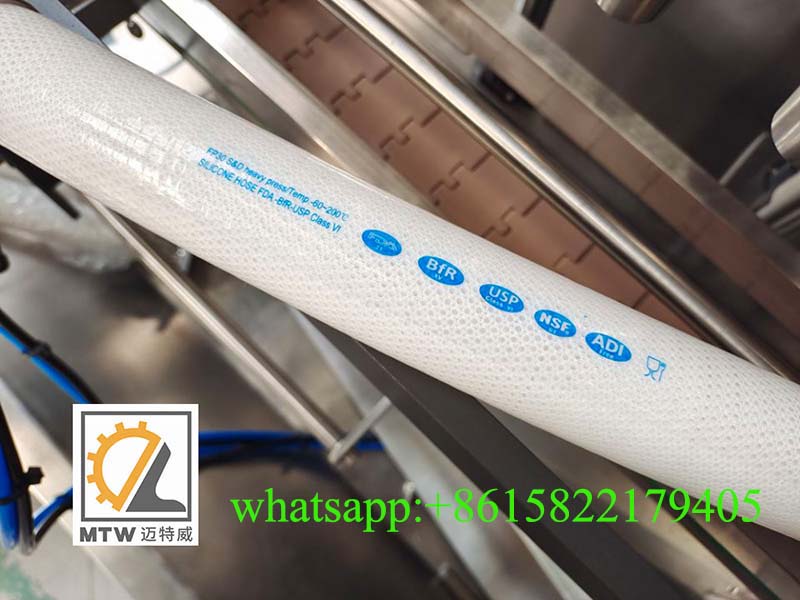

This is pipes that connect the machines, it can bear high temperature,corrosion resistance, Food grade pu pose, high quality make it safe and use longer when working.

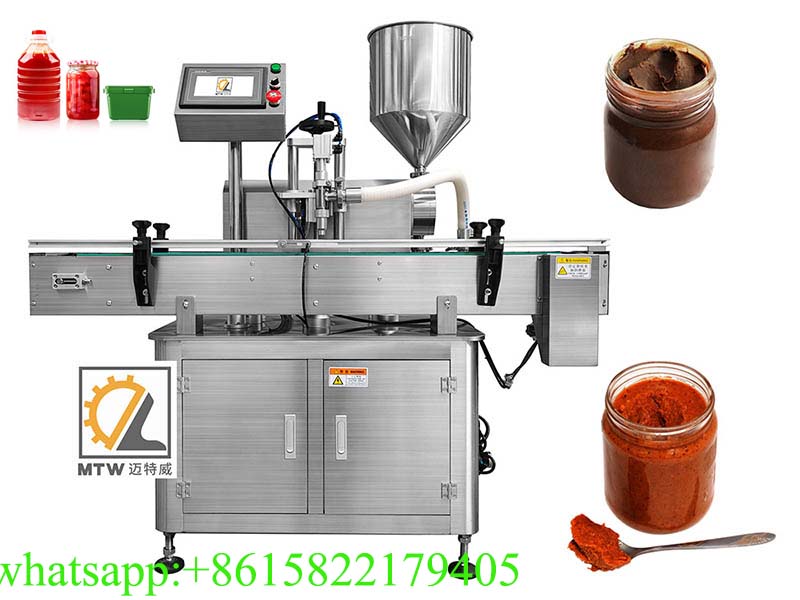

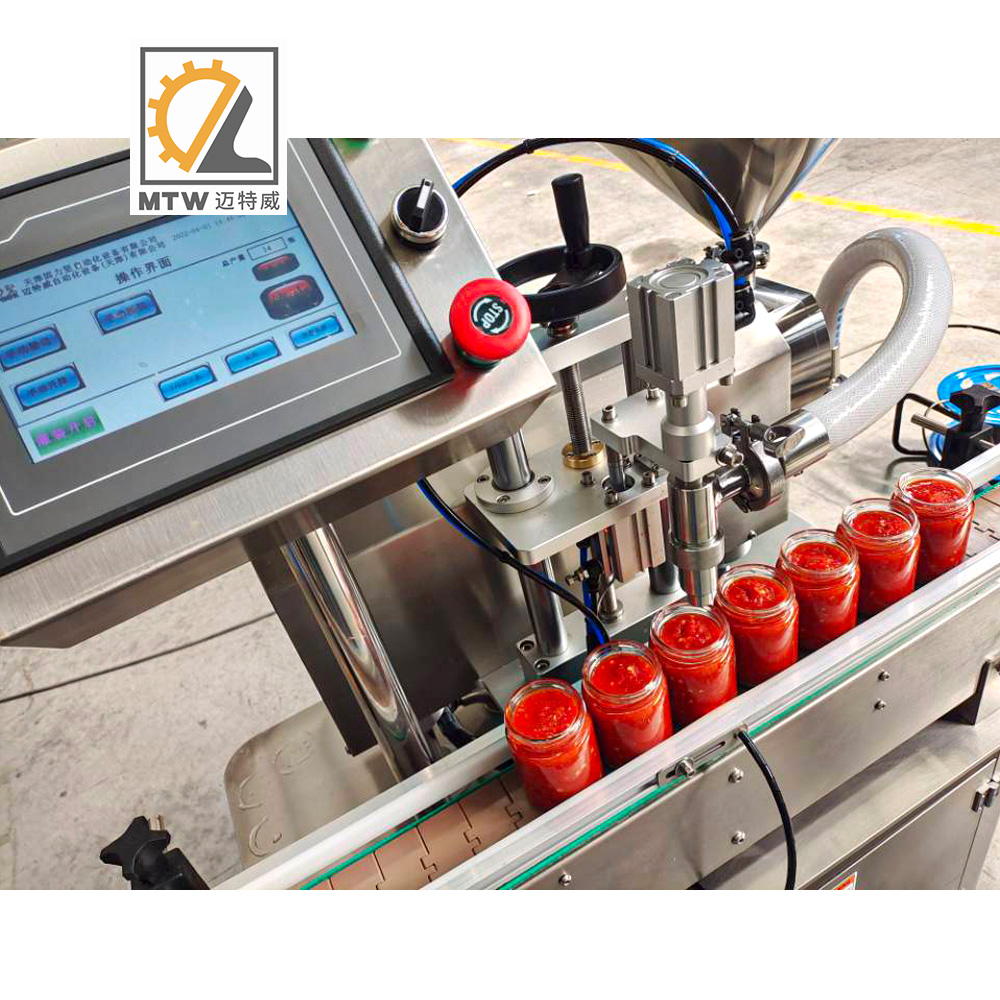

If you are a small scale factory or new start factory, our automatic one head filling machine is a good choice for you. the speed can reach 1000bottles per hour, also have touch screen operate, fast speed and easy operate, can save labout cost and machine cost for you. for the one head automatic filling machine, there is three types can be chooses, cylinder type, piston pump, rotor pump, we will recommend different pump according to your products and requirements.

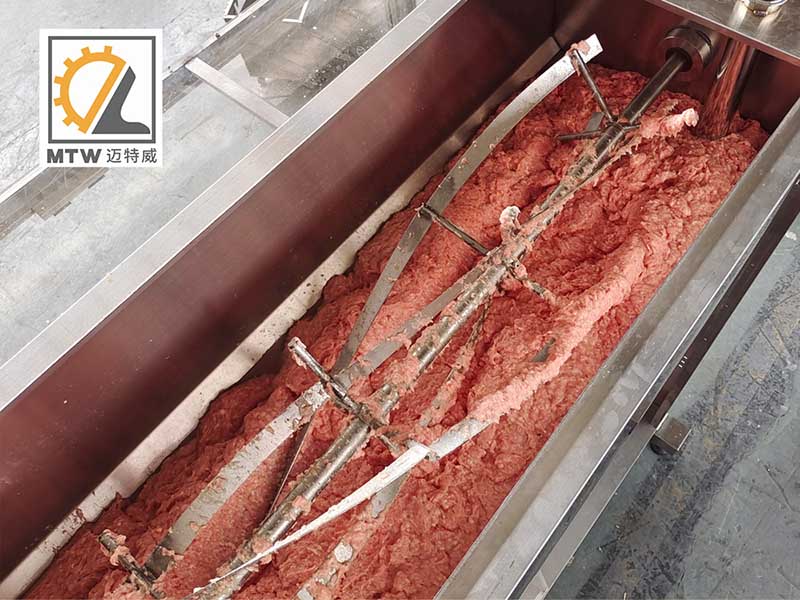

For the chili paste and some thick &sticky paste, we will add a mixture function in the hopper, if need heat function, we will use double layer tank to keep temperature. the paste will be transfered by rotor transfer pump.

if you want to know more about this automatic paste filling machine, please contact Zora, or Follow  Our MTW Filling Machine Youtube channel.
