Automatic sauce filling machine for honey scrupt filling
- Description
- Additional information
- Inquiry
Description

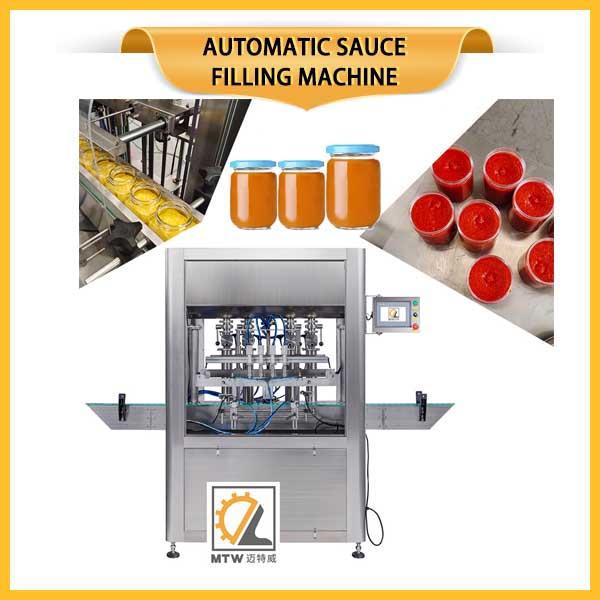

Automatic sauce filling machine for honey scrupt filling
–Specification of the automatic sauce filling machine for honey scrupt filling

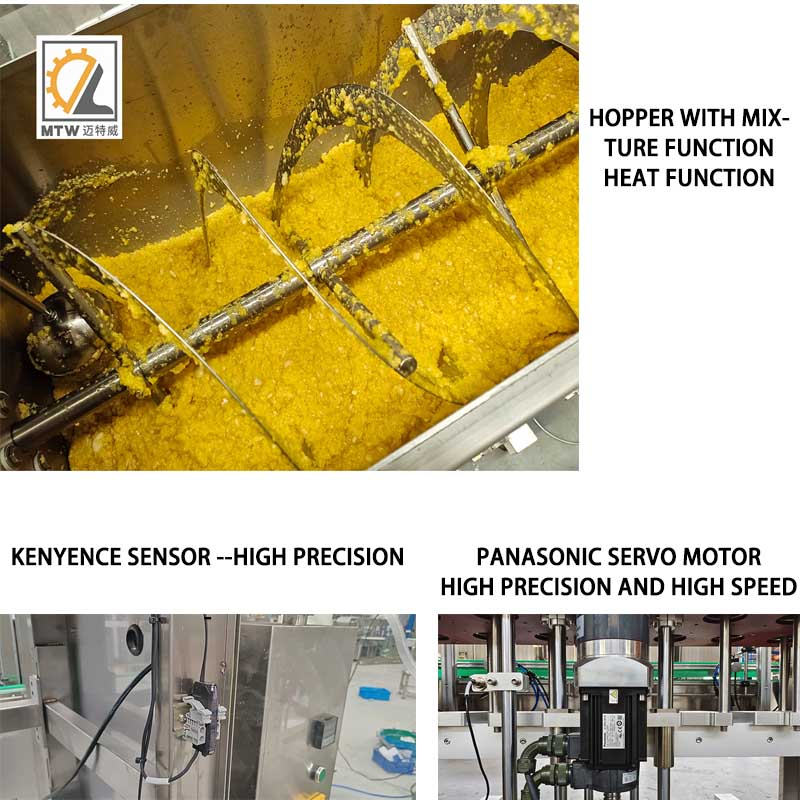

It adopts panasonic servo motor drive piston pump ,keyence sensor , there is a hopper in the top of the filling machine
–Panasonic servo motor ,High precision 99.9%, with mixture and heat function
It can add mixture and heat function in it
—Food grade 316L and sus304 , CE cetification , adjustable and customizable filling nozzles
The filling nozzles and other paste touching part is 316L stainless steel ,Food grade ,have Ce cetification
This filling nozzles are adjustable and customizable according to different bottle sizes.
The filling heads are specially made, with the function of anti-drop and anti-drawing & bubble-kill. Can make diving filling heads to move together with liquid level
—Internation brand configures , 3mm thickness stainless steel ,High quality filling machine ,meet CSA and UL standard

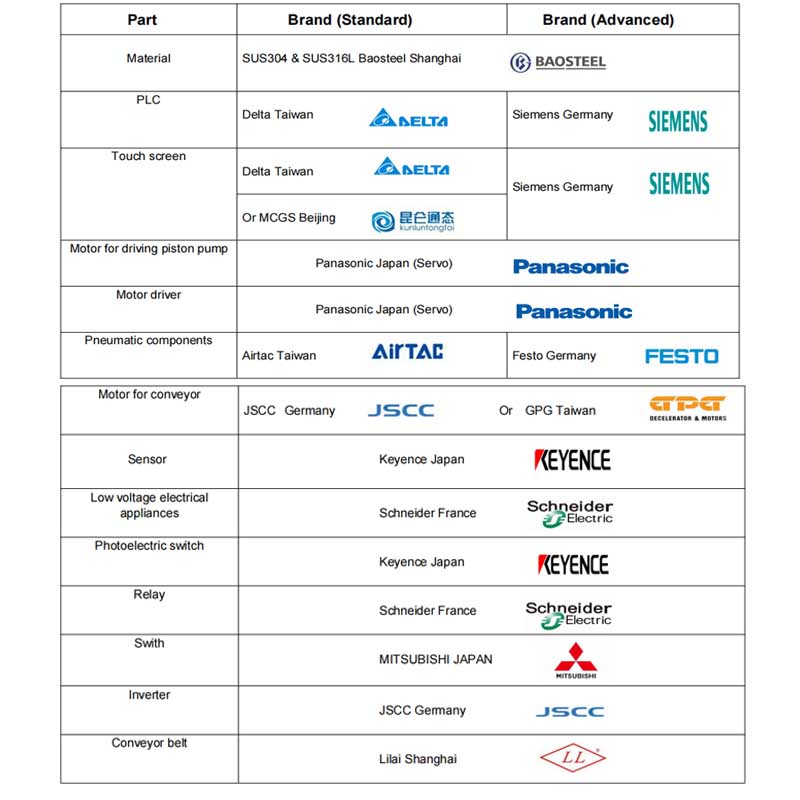

This is the Main configuration of the automatic filling machine , all of them use international brands
this machine is easy operated , all the paramters can be set on the touch screen , with one button cleaning system can ensure the machine is clean enough for food liquid filling line
—One stop service , can offer from filling to labeling machine , competely packing line for your paste sauce filling line
Besides automatic filling machine , we can offer automatic sealing machine and automatic capping machine for different cap styles , and for different bottle shapes ,we can offer different
style automatic labeling machine for optional , if you do not know how to choose an Automatic sauce filling machine for honey scrupt. contact MTW Zora ,
or Follow our MTW Filling Machine Youtube
Zora wang
Email: [email protected]
whatsapp: 0086 15822179405
Additional information
| Name | Automatic sauce filling machine for honey scrupt filling |
|---|---|
| Material | SUS304 and SUS316L |
| Filling heads | 4/6/8/10/12nozzles |
| Filling range | 10-100ml/ 30-300ml/ 50-500ml/ 100-1000ml/ 250-2500mml/ 300-3000ml/ 500-5000ml |
| Filling speed (bottles/ hour & based on 500ml bottle) | 2000-2500BPH/2500-3000BPH/3000-3500BPH/3500-4000BPH/4000-4500BPH |
| Filling precision | 0.2%-0.5% |
| Power | 220/380V 50/60Hz 1.5Kw (Can be tailor made to suit different countries) |
| Air pressure | 0.4-0.6Mpa |
| Machine size (L*W*Hmm) | 2000*900*2200mm/2400*900*2200mm/2800*900*2200mm/3200*900*2200mm/3500*900*2200mm |
| Weight | 450Kg/500Kg/550Kg/600Kg/650Kg |
