Description
Single head automatic sauce bottle filler
This is our sauce bottle filler
This single head automatic sauce bottle filler is used to fill both liquid like(water, wine, oil etc) and paste like
(cream, essential oil, lotion,perfume, honey, tomato paste, sauce etc in food, cosmetics, pharmaceutical and chemical and other industries.
The machine material is made with SUS304, which is clean and hygienic, easy to disassemble and wash.
Filling head adopts with anti-leakage, anti-dropping function.
Filling machine can also be equipped with feeder to feed liquid or paste into hopper automatically.
Below is the spefication of the Single head automatic sauce filling machine
| Material | SUS304 & SUS316L | ||||
| Filling range | 30-300ml/50-500ml | 100-1000ml | 250-2500ml | 300-3000ml | 500-5000ml |
| Drive | Panasonic servo motor or HCFA servo motor, China brand (Can choose) | ||||
| Filling heads | 1 head | ||||
| Hopper size | Standard 40L (Can tailor-made bigger hopper) | ||||
| Power | 220V 50/60Hz 0.5Kw
(Can be tailor-made to suit different countries) |
||||
| Air pressure | 0.4MPA-0.8MPA | ||||
| Filling type | Servo motor+ Rotor pump | ||||
| Filling speed(bottles/ hour) | 1200-1500 bottles/hour (Based on 500ml) | ||||
| Filling accuracy | +/-0.5% (Panasonic servo motor )
+/-1% (HCFA servo motor, China brand ) |
||||
| Conveying method | Conveyor belt (frequency control & speed adjustable) | ||||
| Weight | 200Kg | 200Kg | 220Kg | 250Kg | 280Kg |
| Machine size | L2000*W1000*H1600mm | ||||
Usually for this style sauce bottle filler , we have three optional to fit for different vicosity paste or gels
1/ The most cheapest machine is the automatic cylinder type filling machine .it is the traditional types filling machine , it need adjust the cylinder when filling different volume
2/And then it is the automatic piston pump filling machine , it use panasonic servo motor to drive piston pump , it is more easier operate than cylinder type filling machine and can install the parameter in the PLC and touch screen
and the filling precision is higher than cylinder type filling machine

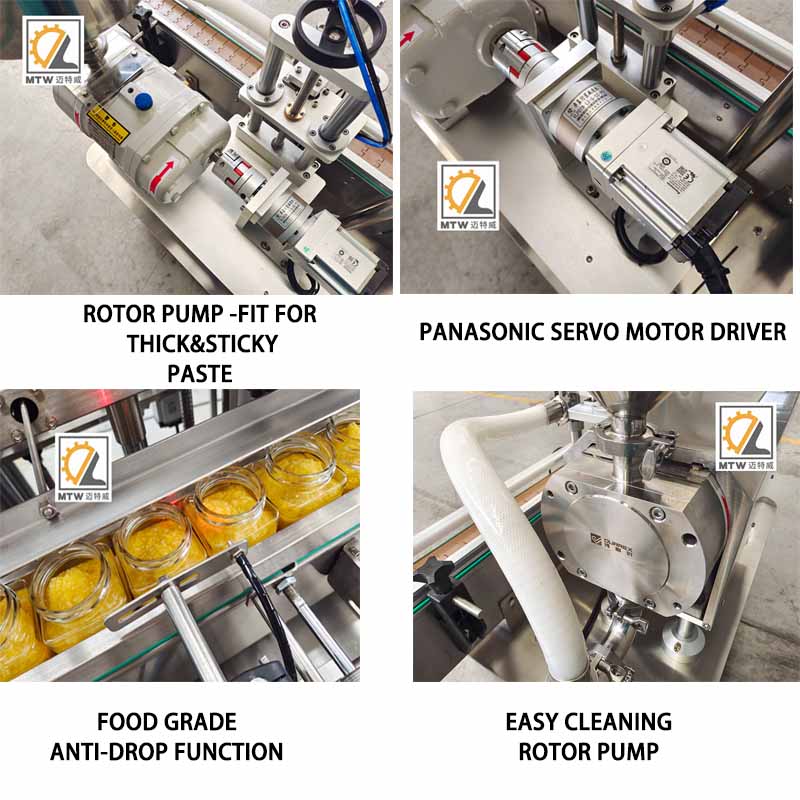

3/The automatic rotor pump filling machine is the third type filling machine , it fit for not only normal liquid ,paste ,gel , but also thick&sticky paste and paste with particles
it is easy cleaning and the fastest speed than other two styles automatic filling machine

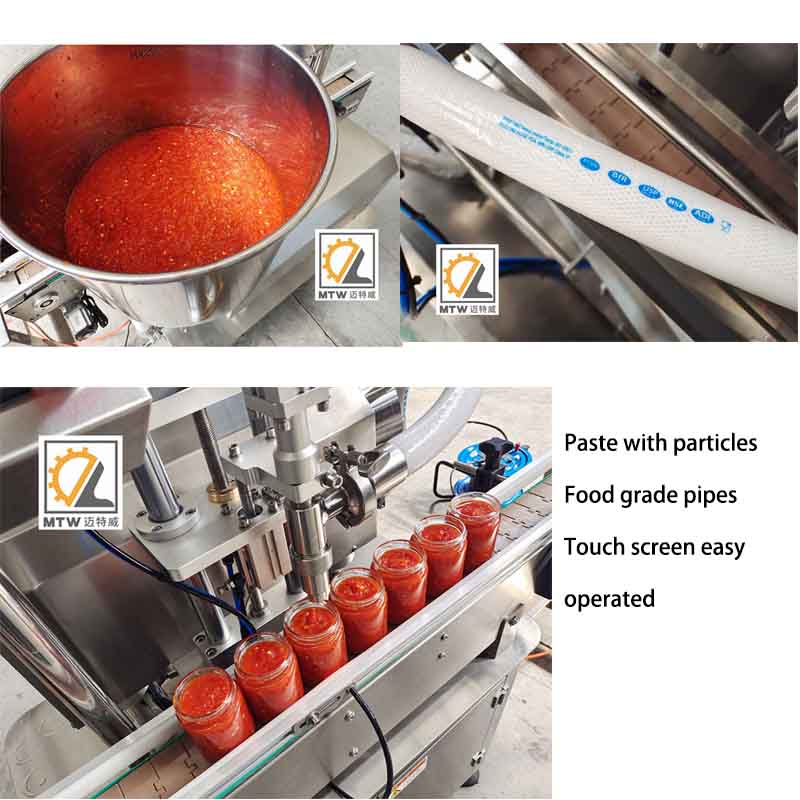

one unit single head automatic sauce filling machine can fit for different filling range bottles food grade pipes and 316L stainless steel ,adjustable filling nozzles can fill different bottles

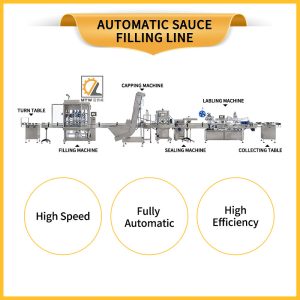

we will add a closure and change a 150L big hopper in the filling machine to avoid dust when filling , it is a good choice for food industry packing line
if you want a multiple heads automatic rotor pump filling machine or automatic piston pump filling machine for sauce bottle filler,contact MTW Zora wang
or Follow MTW Filling machine youtube channel to see more videos there
Zora wang
whatsapp:008615822179405
email:[email protected]
Additional information
| Material | SUS304 & SUS316L |
|---|---|
| Filling heads | 2/4/6/8 nozzles |
| Suit to fill | Liquid like water or oil or semi-paste |
| Filling range | 1-5L/ 5-30L/ 30-200L |
| Filling method | Gravity+ weighing filling |
| Filling speed (Bottles/ hour, based on 5L) | 800bottles per hour |
| Filling error | ±5g (Based on 5L) |
| Power | 220/380V 50/60Hz 1.5Kw (Can be tailor made to suit different countries) |
| Air pressure | 0.6-0.8Mpa |
| Weight | 400Kg;500Kg;600Kg;700Kg |
| Machine size | 1800*1000*2200mm;2400*1000*2200mm;2800*1200*2200mm;3000*1200*2200mm |
