Automatic filling machine price for cooking oil
- Description
- Additional information
- Inquiry
Description
MTW Automatic filling machine price for cooking oil
Automatic Filling Machine Price for cooking oil parameters
| Material | SUS304 and SUS316L | |||
|---|---|---|---|---|
| Filling heads | 4 | 6 | 8 | 10 |
| Filling range | 10-100ml/ 30-300ml/ 50-500ml/ 100-1000ml/ 250-2500mml/ 300-3000ml/ 500-5000ml
(600-6000ml can be tailor-made) |
|||
| Filling speed | 2000-2500 | 2500-3000 | 3000-3500 | 3500-4000 |
| Filling precision | ±0.5-1% | |||
| Power | 220/380V 50/60Hz 1.5Kw (Can be tailor-made to suit different countries) | |||
| Air pressure | 0.4-0.6Mpa | |||
| Machine size (L*W*Hmm) | 2000*900*2200 | 2400*900*2200 | 2800*900*2200 | 3200*900*2200 |
| Weight | 450Kg | 500Kg | 550Kg | 600Kg |

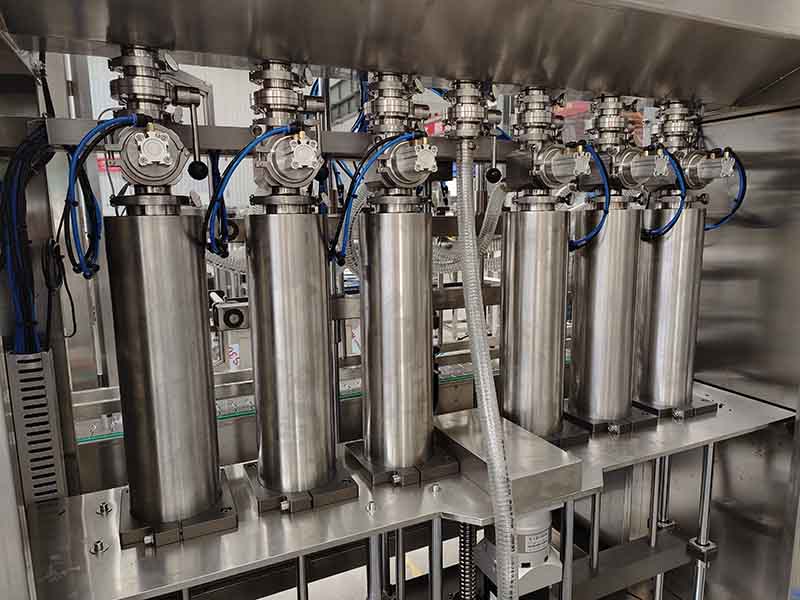

This machine adopts a piston pump and rotary valve, suitable for filling all kinds of thick & sticky material:
In the food industry like edible oil, olive oil honey, sauce, jam, marmalade, tomato paste, ketchup, chocolate paste, luncheon meat, etc
The machine adopts Panasonic servo motor to drive piston pumps, with high speed and high filling accuracy.
Automatic filling machine price for cooking oil connect with air compressior to operate. machine parts use stainless steel SUS304 & SUS316L. the machine use world word-class brand components, such as photo sensor—Keyence (Japan) PLC—Mitsubishi (Japan) Electrinic control part—Schneider (France) Touch screen—Delta (Taiwan) Or MCGS(Beijing China) Cylinder–AirAc (Taiwan).

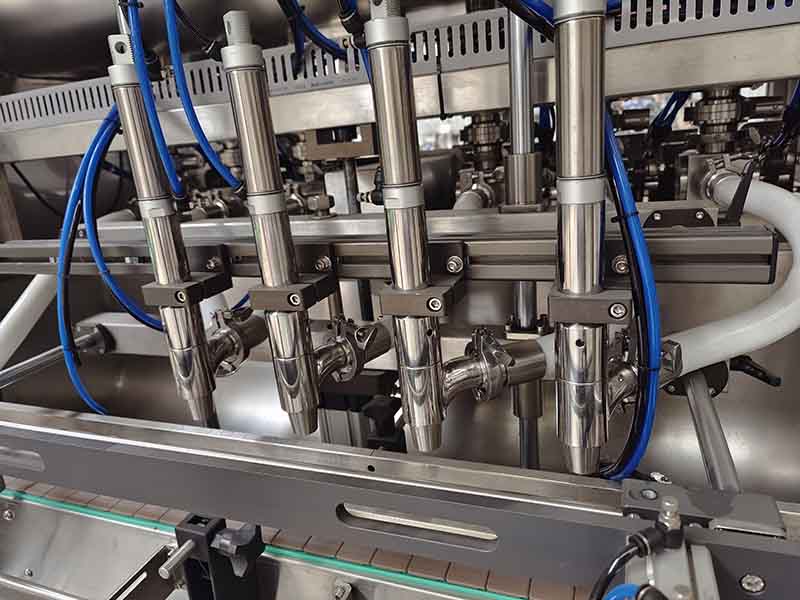

This is adjustable filling nozzles , fit different bottles ,316L food grade stainless steel
There is a sensor on tank to start or stop the pump transfer liquid/ paste or stop transfer, it is automatically. for hot filling, we make double tank, which can be heated to keep temperature for material inside. also with a mixer inside to stir material even, ensure good filling accuracy. if you like this Automatic filling machine price for cooking oil, please contact MTW filling machine Zora

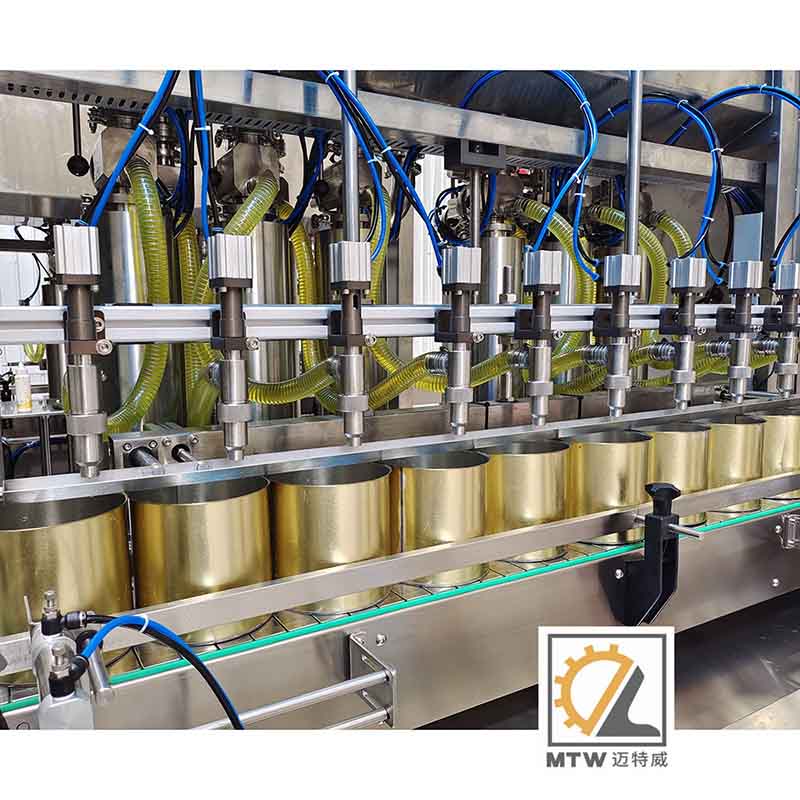

To ensure the bottles and filling heads are in the correct position, we add a special bottles position device on the Automatic filling machine price for cooking oil to make. the whole filling process smooth and stable. No bottle no filling. the filling heads are specially made, with the function of anti-drop and anti-drawing & bubble-kill. can make diving filling heads to move together with liquid level.

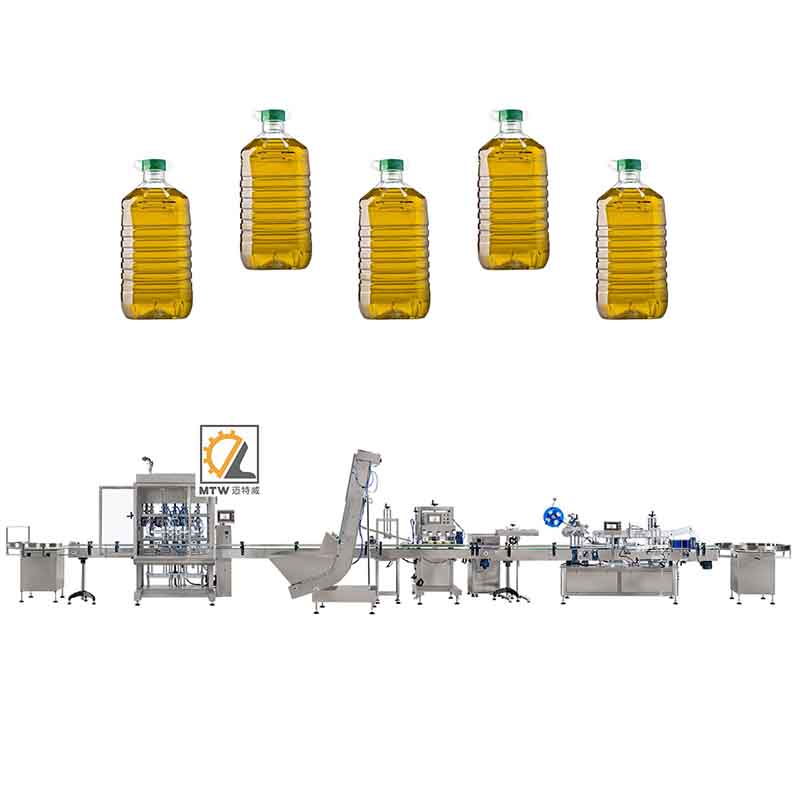

This is a whole line for cooking oil process, it includes automatic feeding machine, automatic filling machine ,automatic capping machine, automatic labeling machine and collecting table, it is a completely automatic cooking oil filling line.
If you want to know more about our Automatic filling machine price for cooking oil, please Follow My Youtube channel or contact Zora directly
Zora wang
Email: [email protected]
whatsapp:0086 15822179405
Additional information
| Filling nozzles | 1/2/4/6/8/10/12 nozzles |
|---|---|
| Piston pump | 100ml piston pump -10ml-100ml bottles |
