Filling Line equipment for round bottle liquid filling line

Description

Filling Line equipment for round bottle liquid filling line

This is an automatic filling line equipment , this line for round bottle liquid or paste filling , if you have square or other shape bottles ,we will recommend another double sides labeling machine

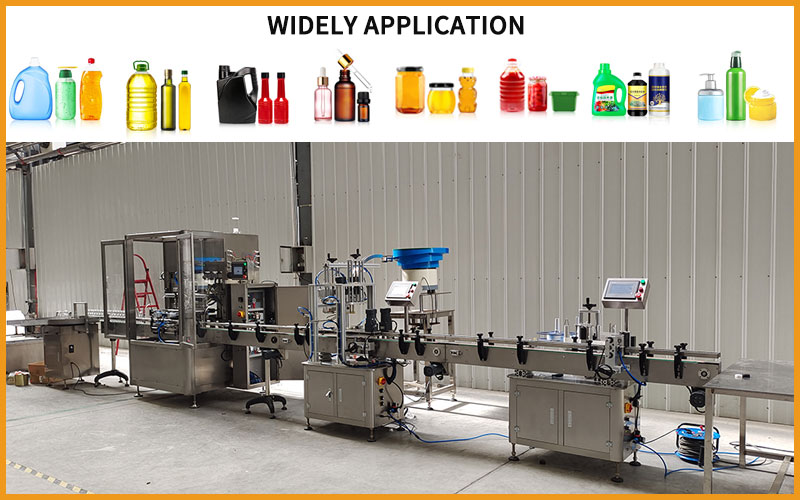

This filling line fit for all liquid or paste use round shape bottles , such as detergent filling line ,edible oil filling line ,lubracating oil filling line , cosmetic filling line , chili paste filling line , honey filling line and so on

we would customize according to customer bottles shape , speed requirment , bottle volume and product vicosity

 Panasonic servo motor filling machine -it adopts panasonic servo motor drive piston pump , this is the details of the front and back

Feathers:

1/Piston pump :panasonic servo motor , 99.9%high precision

2/ Rotor valve : suitable for filling all kinds of thick & sticky materia

3/Touch screen+PLC :  easy filling volume adjusted  ,save time

can save three filling volume and switch freely ,easy operate

4/High quality andworld word-class brand components :photo sensor—Keyence (Japan) PLC—Mitsubishi (Japan) Electrinic control part—Schneider (France) Touch screen—Delta (Taiwan) Or MCGS(Beijing China) Cylinder–AirAc (Taiwan)

5/There is a switch on the hopper , it can control the liquid filling volume automatically

6/Filling nozzles :no bottle no filling ,anti-drop function , diving heads optional ,customizable and adjustable fit more liter bottles

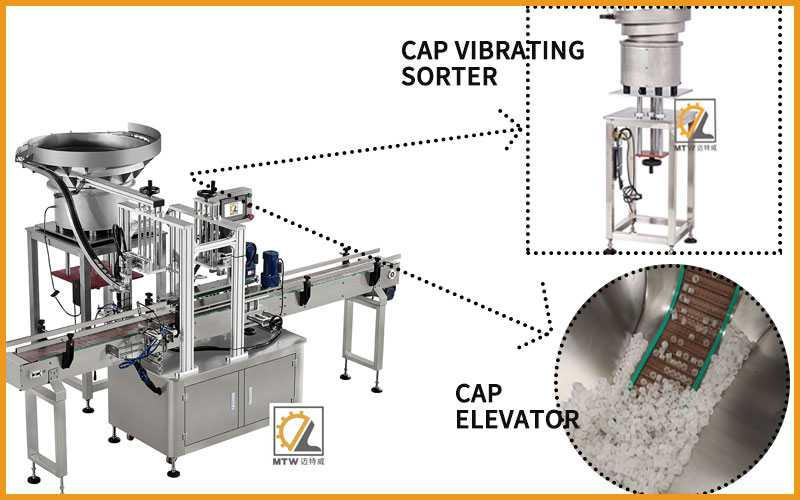

Automatic cap vibrating sorter 4wheels capping machine

Feathers :

1/ Cap vibrating sorter : fit for more different styles caps , widely application

If you have more different size caps , and want to put more quantity ,you can replace the cap elevator instead the cap vibrating sorter

2/Feeding caps : there is two ways feeding caps , one pull caps , it fits for the screw caps without inner cap

Another is  pick and put head , it fits for the caps with inner caps

3/ 4wheels screwing part : 4 four wheels will move together to make the cap screw tight after the machine putting caps

there is 6wheels capping machine or pressing caps capping device can be choosed according to your cap style



Automatic blue belt round bottle labeling machine

Feathers:

1/Blue belt：Fit for all round shape bottles sticker labeling ， high speed 80-200 bottles/ jars/ cans per min

2/Sensor : Germany sick sensor , high precision +-0.5mm

3/Suitable Bottle Size:Diameter: 10-150mm Height 30-350mm

Suitable Label Size:Length 10-350mm  Width 10-200mm

It can connect hot ribbon printer or laser printer for the date printing

Automatic Turn Table

Feathers:

1/ Round shape or square shape two styles optional

2/suitable round shape and square shape bottles with different sizes

3/ can connect with the filling line used in the begining for the feeding machine or used in the end for the collecting machine

4/ High quality 3mm stainless steel +20mm copper plate , more stable and strong

Packing way : wooden box

Warrenty : 2years warrenty ,free accessories  7*24hours after sale service
